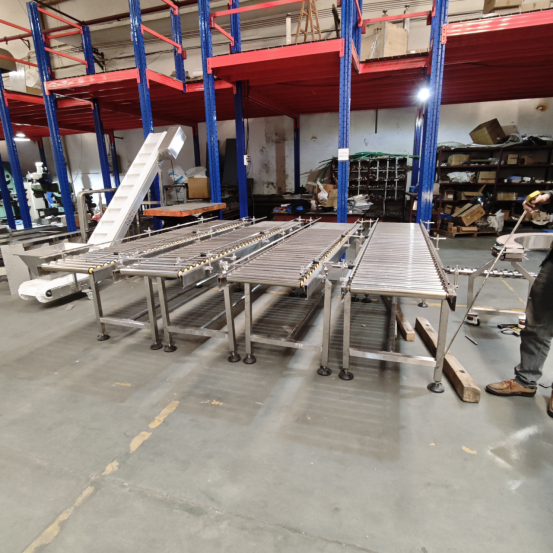

Unpowered roller conveyors are easy to connect and filter. Multiple unpowered roller lines and other conveying equipment or special machines can be used to form a complex logistics conveying system to meet various process needs. Accumulation and conveying of materials can be achieved by using accumulation unpowered rollers. The structure of the unpowered roller conveyor is mainly composed of transmission unpowered rollers, frames, brackets, drive parts and other parts. The material form of the line body is divided into: aluminum profile structure, steel frame structure, stainless steel structure, etc. The material of the unpowered roller is divided into: metal unpowered roller (carbon steel and stainless steel), plastic unpowered roller, etc. Weifang unpowered roller conveyor has the characteristics of large conveying capacity, fast speed, light operation, and can realize multi-variety co-line diversion conveying. Unpowered roller conveyors are suitable for various needs such as continuous conveying, accumulation, sorting, and packaging of various finished items. They are widely used in electromechanical, automobile, tractor, motorcycle, light industry, home appliances, chemical, food, post and telecommunications and other industries.

Unpowered roller conveyor is one of many conveying equipments. It mainly conveys items with flat bottom. Bulk materials, small items or irregular items need to be placed on pallets or in turnover boxes for transportation. It has good load-bearing capacity and can convey single-piece materials with large weight or withstand large impact loads. The structural form of unpowered roller conveyor can be divided into powered unpowered roller conveyor, unpowered unpowered roller conveyor, and accumulation unpowered roller conveyor according to the driving mode. According to the line form, it can be divided into horizontal unpowered roller conveyor, inclined unpowered roller conveyor and turning unpowered roller conveyor. It can also be specially designed according to customer requirements to meet the requirements of various customers.

There are many types of conveyors, including belt conveyors, screw conveyors, scraper conveyors, belt conveyors, chain conveyors, unpowered roller conveyors, etc. Among them, unpowered roller conveyors are mainly used for the transportation of various boxes, bags, pallets and other piece goods. Some bulk materials, small items or irregular items need to be placed on pallets or in turnover boxes for transportation.

1. Length, width and height of the conveyed object: Goods of different widths should choose non-powered rollers of suitable width, and generally "conveying object + 50mm" is used; 2. The weight of each conveying unit; 3. Determine the bottom condition of the material to be conveyed on the non-powered roller conveyor; 4. Consider whether there are any special working environment requirements for the non-powered roller conveyor (such as humidity, high temperature, the influence of chemicals, etc.); 5. The conveyor is non-powered or motor-driven. Manufacturers must consider the above technical parameter information when customizing non-powered roller conveyors. In addition, customers should be reminded that in order to ensure that the goods can be conveyed smoothly when the non-powered roller conveyor is working, at least three non-powered rollers must be in contact with the conveyed objects at any time. For items packed in soft bags, pallets should be added for transportation when necessary.
